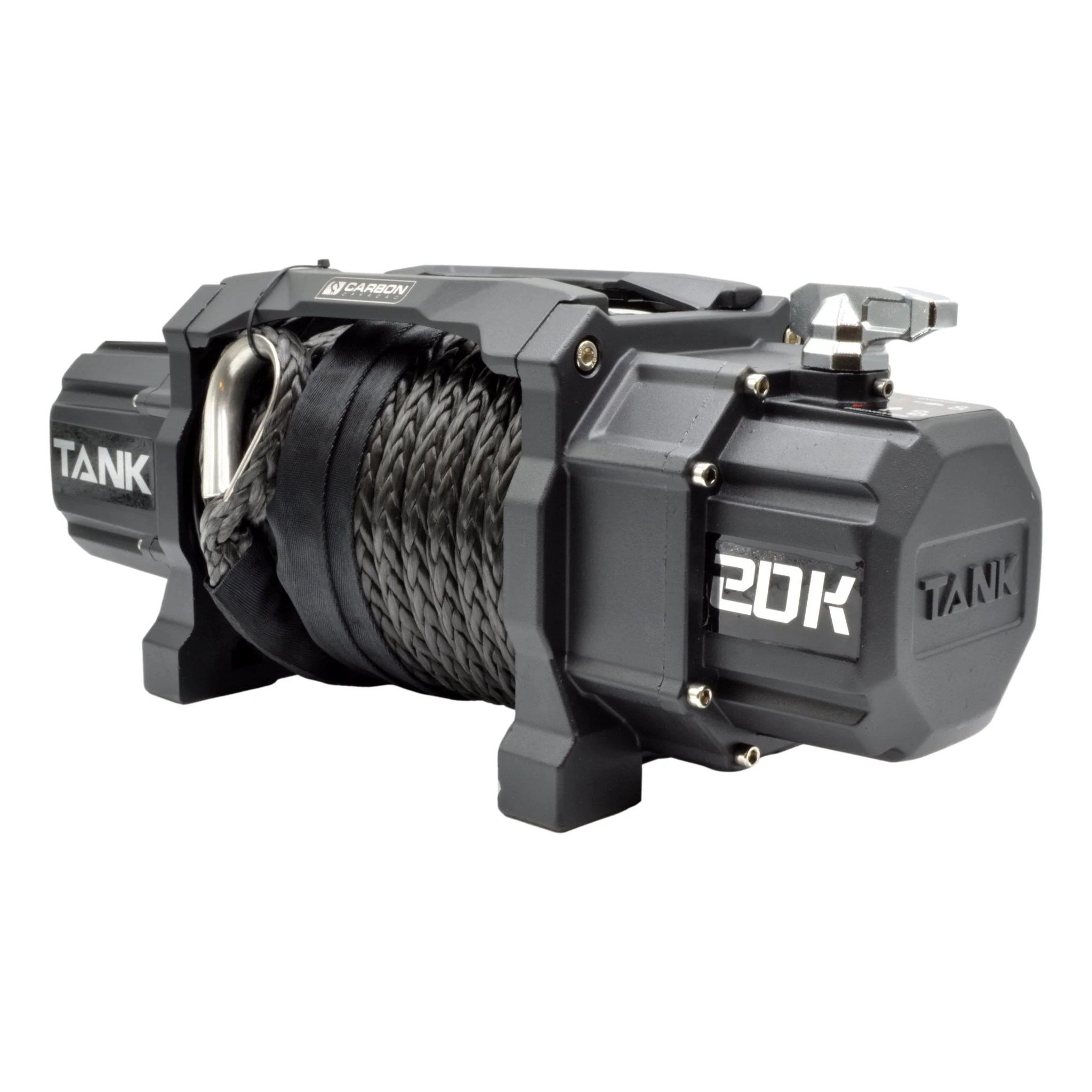

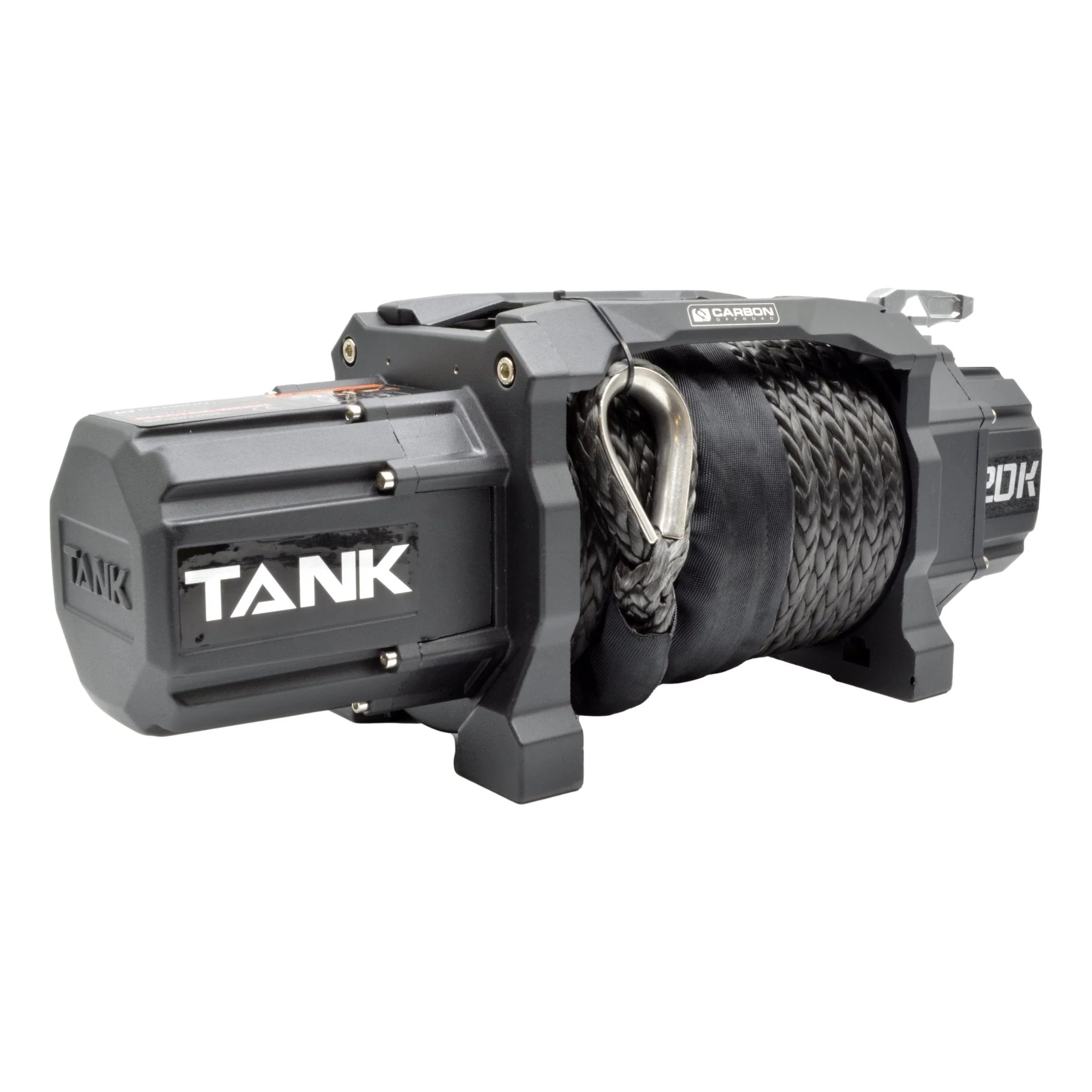

Carbon TANK - 20000lb Winch 24V [Clearance]

The Carbon Offroad TANK 20000lb Winch is a true powerhouse — engineered to deliver unmatched strength, precision, and water protection. Designed for serious off-roaders, overlanders, and recovery professionals, the TANK represents a new generation of winch design: lighter, stronger, smarter. While “TANK” usually means heavy, this one defies the stereotype — built tough yet surprisingly lightweight.

Engineering & Construction

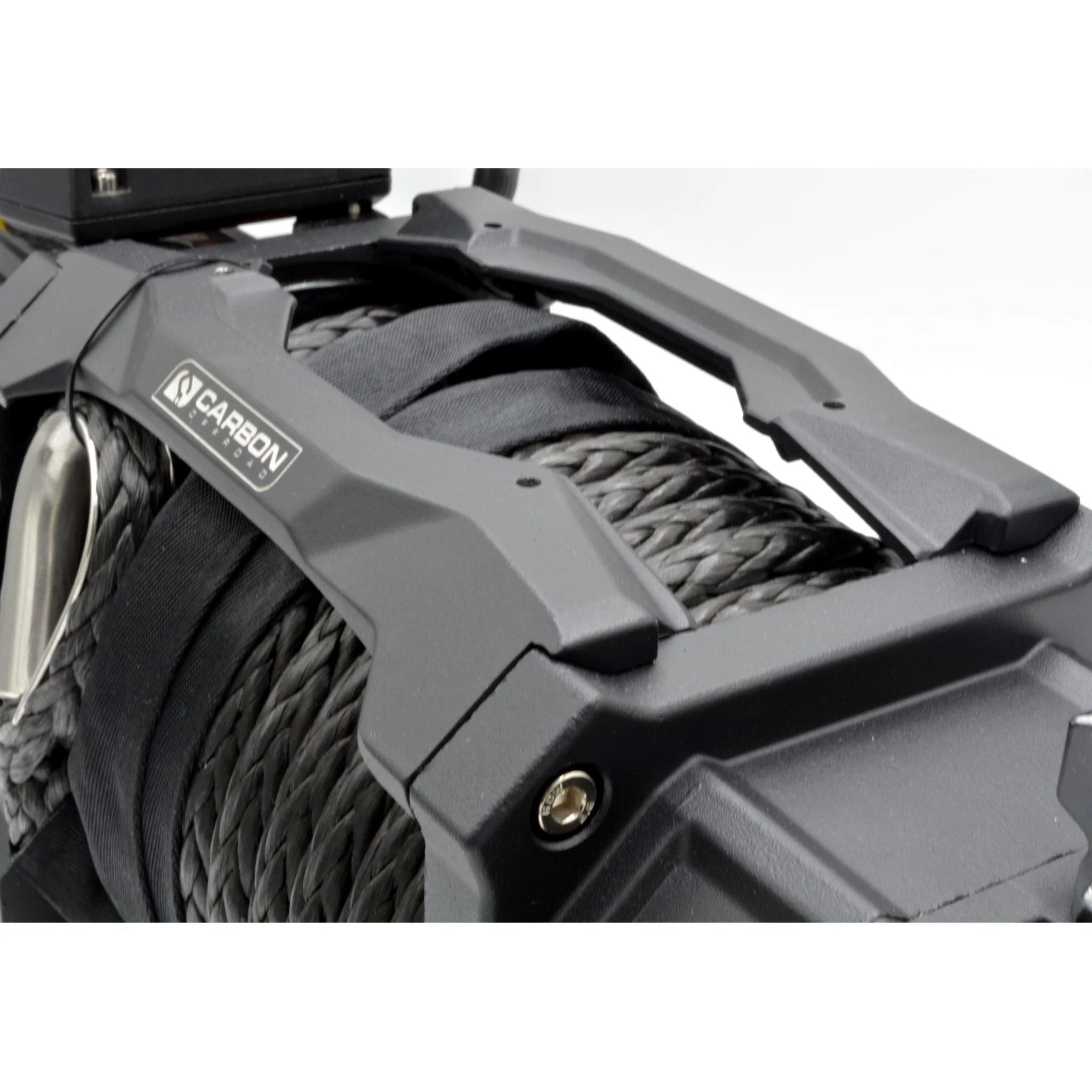

The TANK’s frame and gearbox housings are CNC-machined from billet and cast aluminium alloys for maximum strength with minimum weight. Key structural components such as the winch drum remain steel for durability, while the cast-alloy control box and solid alloy fairlead add both toughness and refined design. The result is a winch that’s as functional as it is impressive to look at.

Sealing & Waterproofing

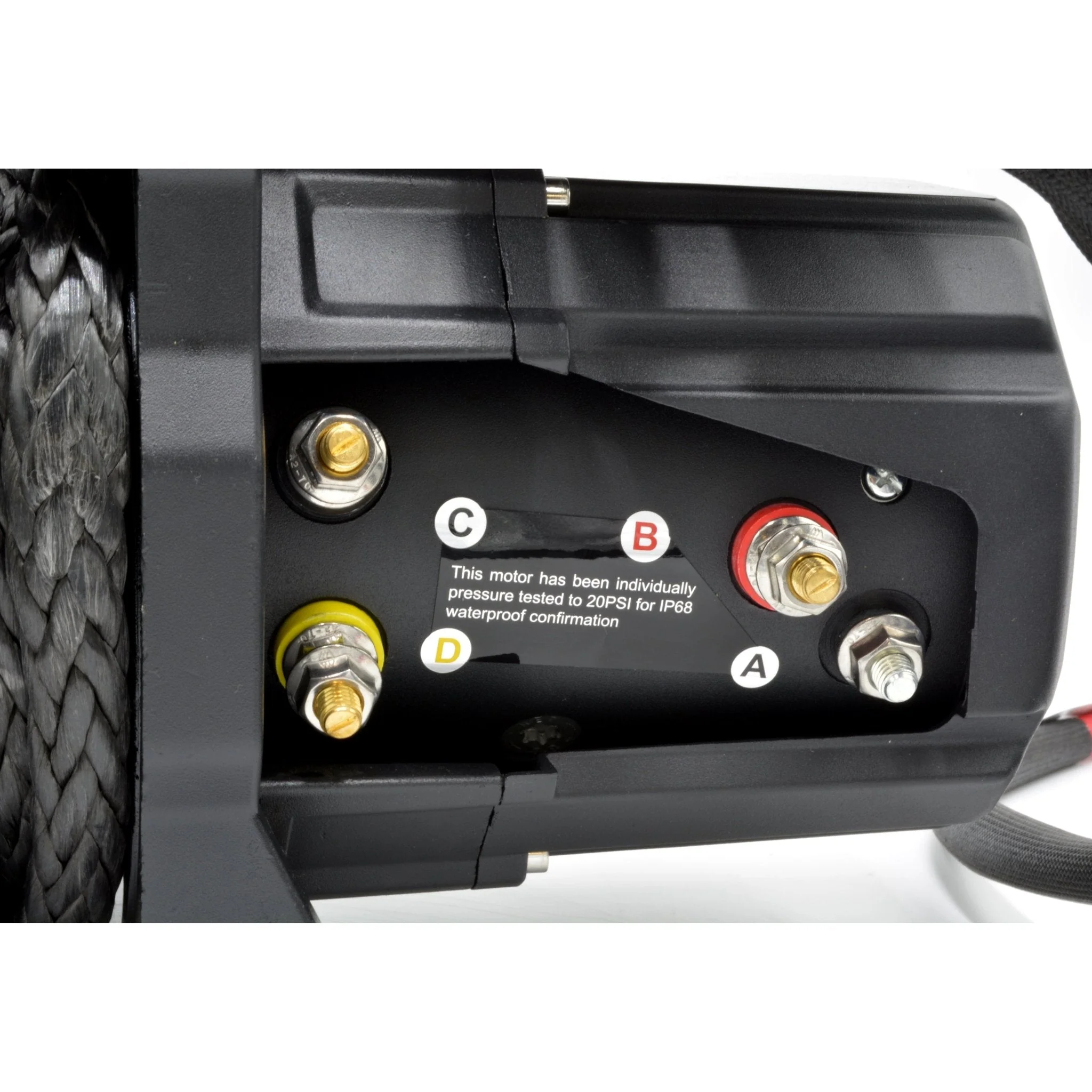

Every TANK winch motor and drum frame mount is assembled and pressure-tested at the factory to 20 PSI — equivalent to 14 m underwater — guaranteeing a watertight seal before it leaves the line. The gearbox housing features a two-stage mechanical and O-ring sealing system, achieving IP69K-level protection from water ingress. You can count on this winch to stay dry and operational in any conditions.

Specifications

• Rated pulling power: 20,000 lb (9072 kg)
• Power: 24 V DC (also available in 12 V)
• Motor: 7.8 HP series-wound, intermittent duty cycle
• Cabling: 25 mm² conduited cable with terminated lugs
• Hand control: 2-in-1 rechargeable wireless or plug-in wired loom (spare battery included)
• IP rating: IP68 — motor unit pressure-tested to 20 PSI
• Hook: high-strength forged alloy, wide-gate style
• Control box: premium cast-alloy design with 600 amp solenoid and inbuilt wireless receiver
• Isolator: heavy-duty marine rotary switch with mounting bracket
• Winch housing: cast and precision-machined alloy
• Gear train: 440:1 ratio 4-stage planetary gearset
• Clutch: rotating ring-gear clutch, easy to engage/disengage
• Synthetic rope: 21 m × 14 mm UHMWPE fibre
• Drum diameter: 88 mm
• Battery: 650 CCA minimum
• Weight: 37 kg (shipping), 33.4 kg (as fitted)

Performance & Control
A 7.8 HP series-wound motor, 440:1 four-stage planetary gearset, and rotating ring-gear clutch combine for smooth power delivery and easy free-spooling. The brake is built into the gear train to prevent heat transfer to the drum — protecting your synthetic rope during long or heavy pulls. The 24-volt system provides efficient, high-torque output for large vehicles and recovery trucks.

Mounting & Compatibility

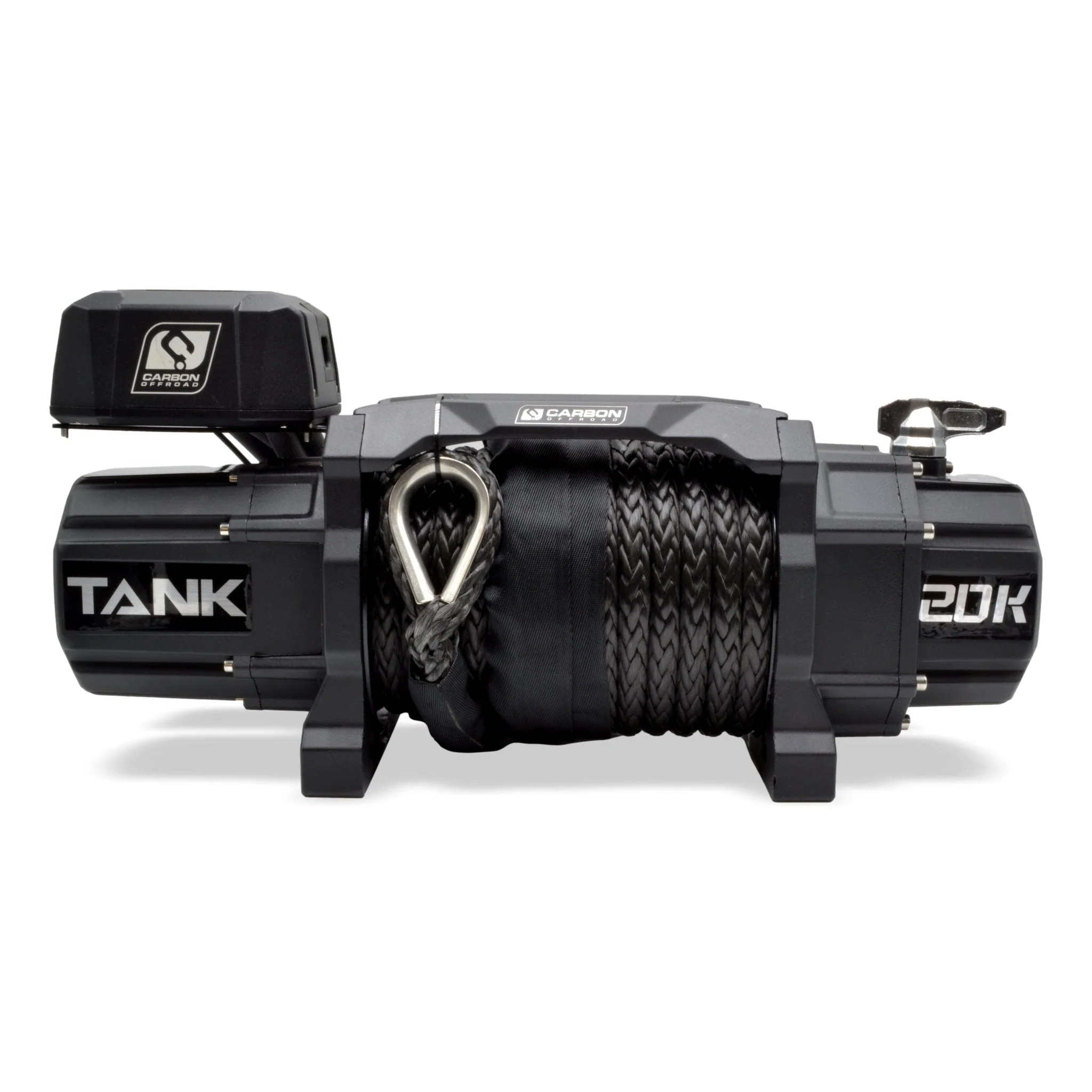

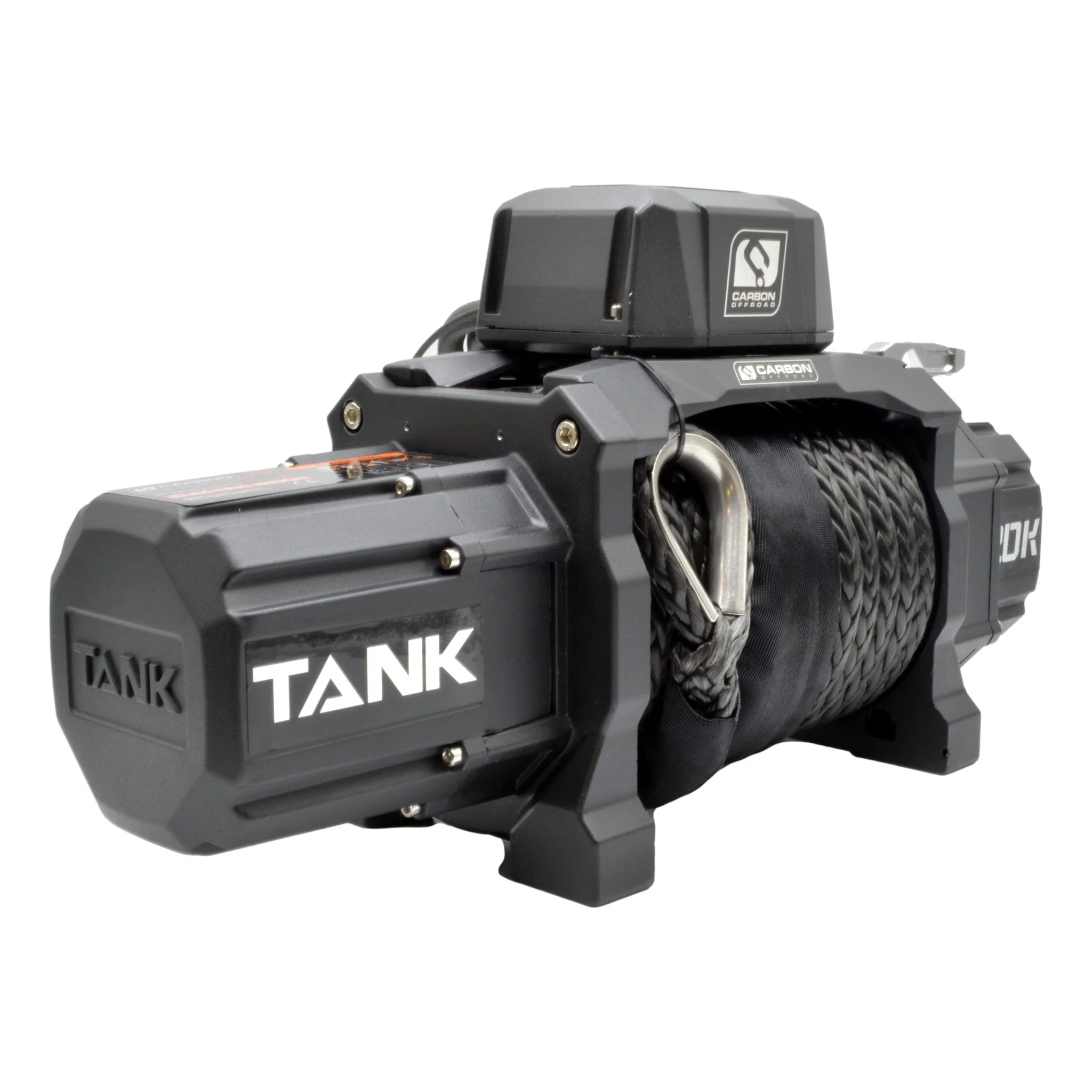

The control box can be mounted directly over the drum using integrated tie-bar threads, over the motor with supplied brackets, or remotely using an optional mount. The TANK fits the industry-standard 254 mm × 114.3 mm (10 × 4.5 in) bolt pattern. With over 9 tonnes of single-line pulling capacity, it’s suitable for full-size 4×4s, off-road campers, and trucks running 24-volt systems.

What’s in the Box

• Tank winch with synthetic rope
• Control box kit with all cables
• Battery earth cable
• 2-in-1 wireless remote control with plug-in cable backup

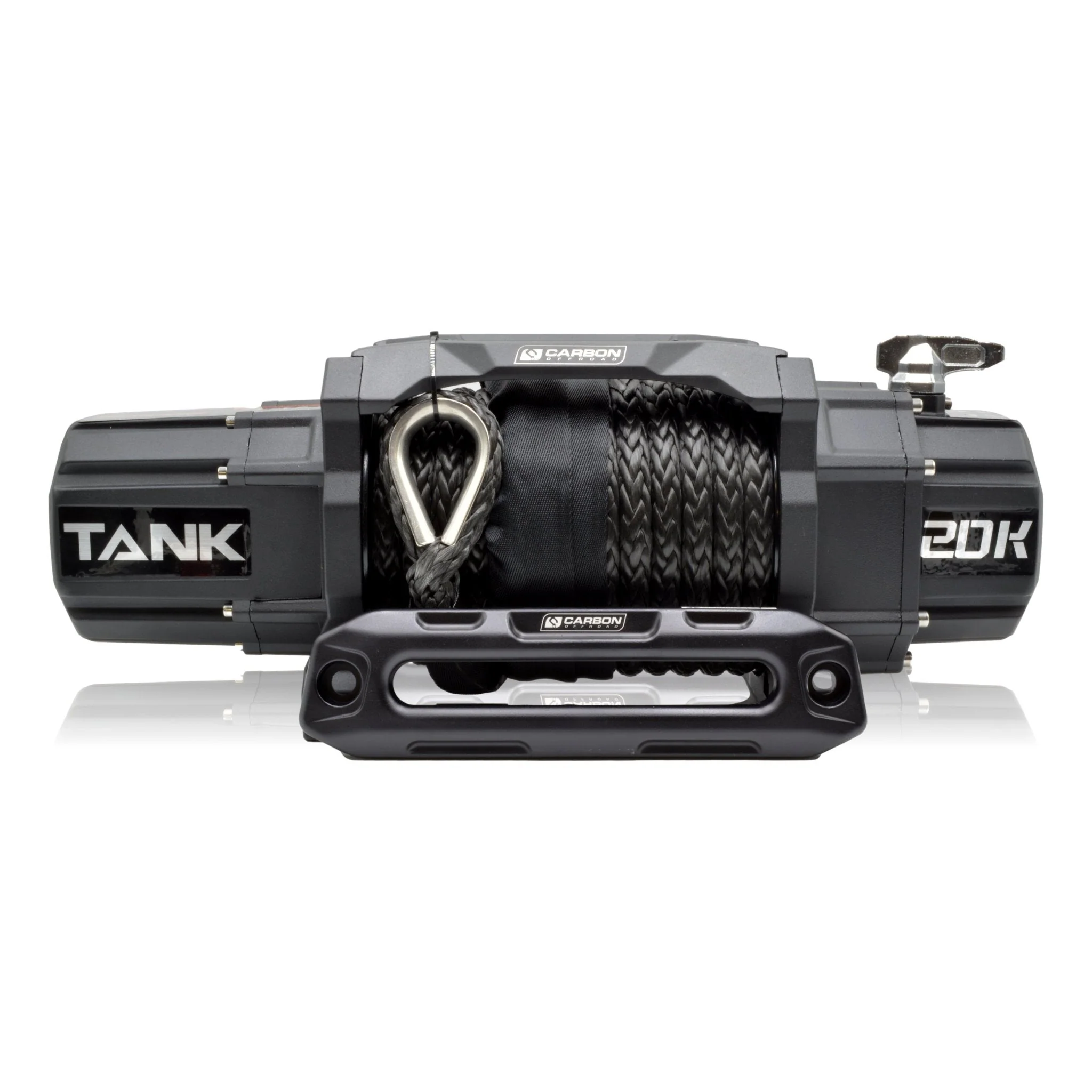

• Alloy fairlead (standard offset)
• Forged alloy hook with mounting and split pins
• Mounting bolt kit (includes fairlead bolts)
• Control-box “over-motor” mounting brackets with hardware
• Rotary battery isolator switch with connecting cable and bracket
• Hook safety strap
• Instruction manual

Rated Line Pull

• 1st layer: 20,000 lb (9072 kg) — 16–21 m rope out
• 2nd layer: 16,216 lb (7371 kg) — 11–16 m rope out
• 3rd layer: 13,636 lb (6198 kg) — 1–11 m rope out

Line Speed & Amp Draw

• No load: 5 m/min (16.4 ft/min) @ 85 A
• 6000 lb (2721 kg): 2.25 m/min @ 185 A
• 10,000 lb (4563 kg): 1.55 m/min @ 275 A
• 15,000 lb (6803 kg): 1.0 m/min @ 425 A
• 20,000 lb (9072 kg): 0.8 m/min @ 430 A

Warranty
Limited Lifetime Geartrain / 5-Year Electrical Warranty
5-Year Water Ingress Protection Warranty
Designed and tested for Australian and international conditions.

Partner item — ships directly from Carbon Offroad USA.
